T75DT003

Ana Sayfa LEHİMLEME SİSTEMLERİ Havya Modelleri TMT-5000S Havya Uçları T75DT003

Model
T75DT003
Marka
Thermaltronics

T75DT003 Datasheet

Technical Specifications

T75DT003

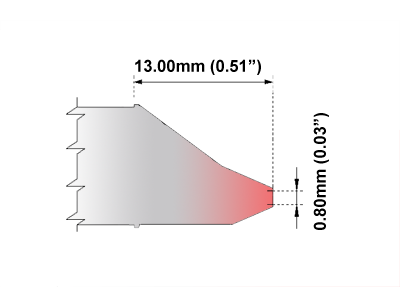

Desoldering Tip - Inner Diameter 0.80mm (0.03")
Tip Style:	Desoldering
Tip Width:	0.80mm (0.03")
Tip Length:	13.00mm (0.51")

750 Type Cartridge¹:	350°C - 398°C
RoHS Compliant² / Lead Free:	YES
For Use With:	TMT-5000S-1, TMT-5000S-2

Ürün 1-2 İş Günü içerisinde teslim edilebilir.

Stokta Var

Birim Fiyat 1610,92 TL + KDV

Havale İndirimli 1564,00 TL + KDV

Genel Özellik
Teknik Özellikler
Teknik Dökümanlar
Taksit
Video

T75DT003 Datasheet

Technical Specifications

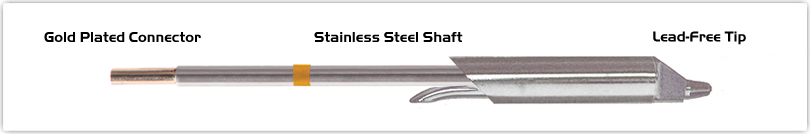

T75DT003
Desoldering Tip - Inner Diameter 0.80mm (0.03")
Tip Style:	Desoldering
Tip Width:	0.80mm (0.03")
Tip Length:	13.00mm (0.51")

750 Type Cartridge¹:	350°C - 398°C
RoHS Compliant² / Lead Free:	YES
For Use With:	TMT-5000S-1, TMT-5000S-2

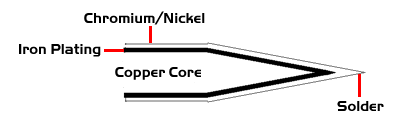

Material Composition

Patented Color Band

All components are RoHS compliant and Lead-Free.

¹ Thermaltronics tip cartridges will typically idle within a temperature range of +/-1.1°C. However, there is variation in idle temperature across tip geometries within an individual temperature series. Thermaltronics offers a wide variety of tip geometries from 0.25mm fine point tip to 5mm chisel. The length and geometry of a tip will have an influence on the tip idle temperature. To accurately measure idle temperature it will depend greatly on the measurement method, technique and equipment used. Two different methods or the use of alternative equipment will produce different test results.
² Please refer to http://www.rohs.gov.uk for details on RoHS Compliance.
